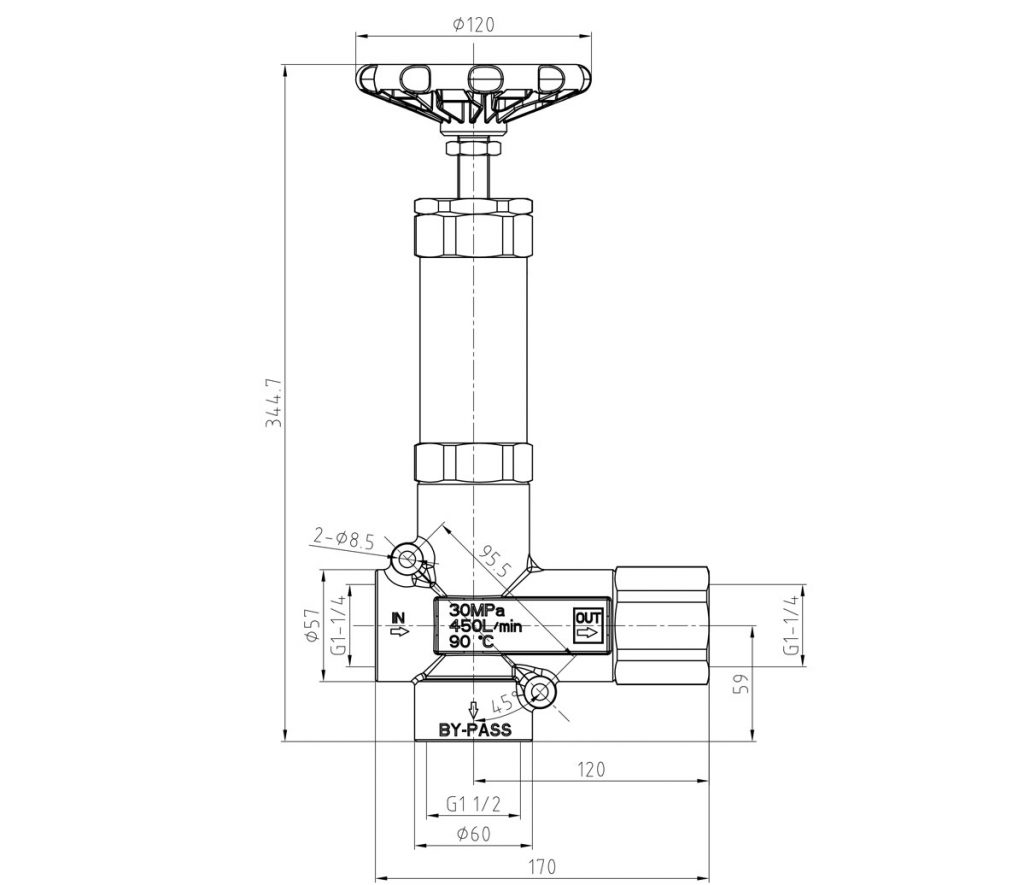

Installation Dimension Drawing

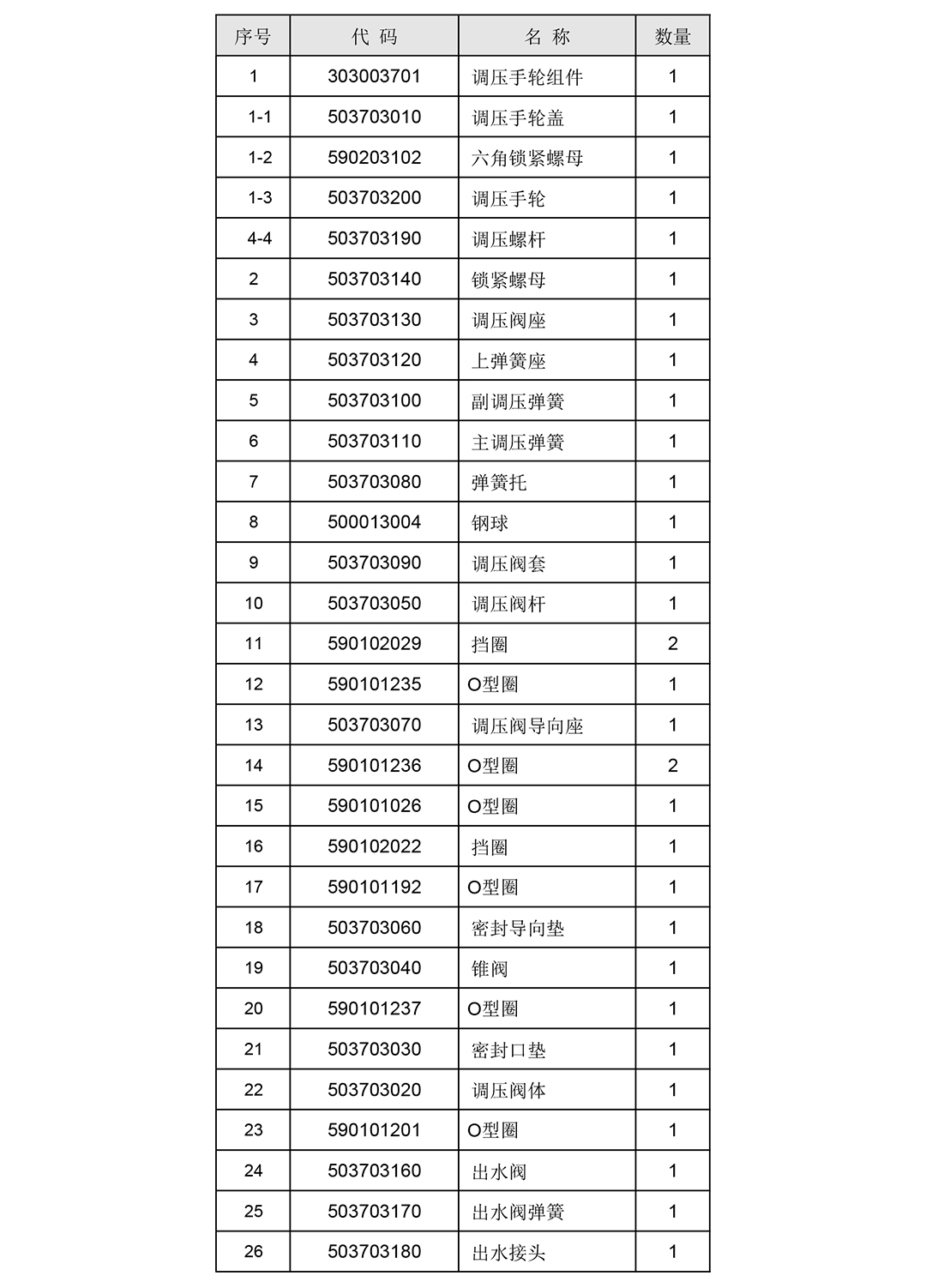

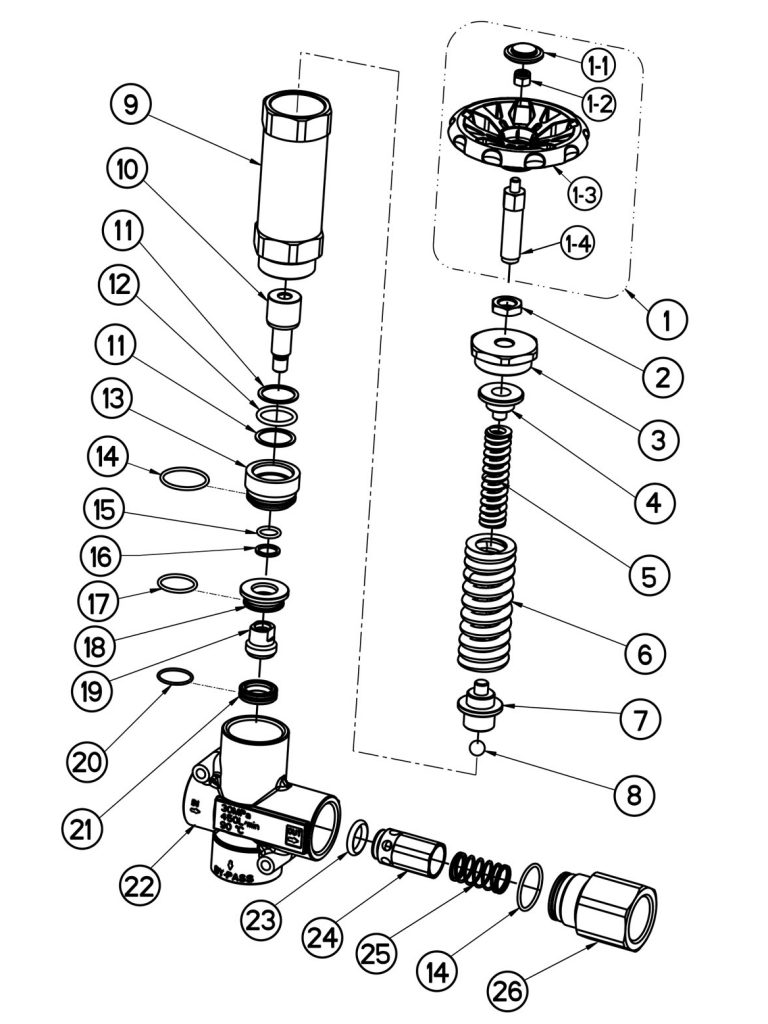

Exploded View and Bill of Materials
customer service
If you have any questions, you can contact us in the following ways
If you have any questions, you can contact us in the following ways

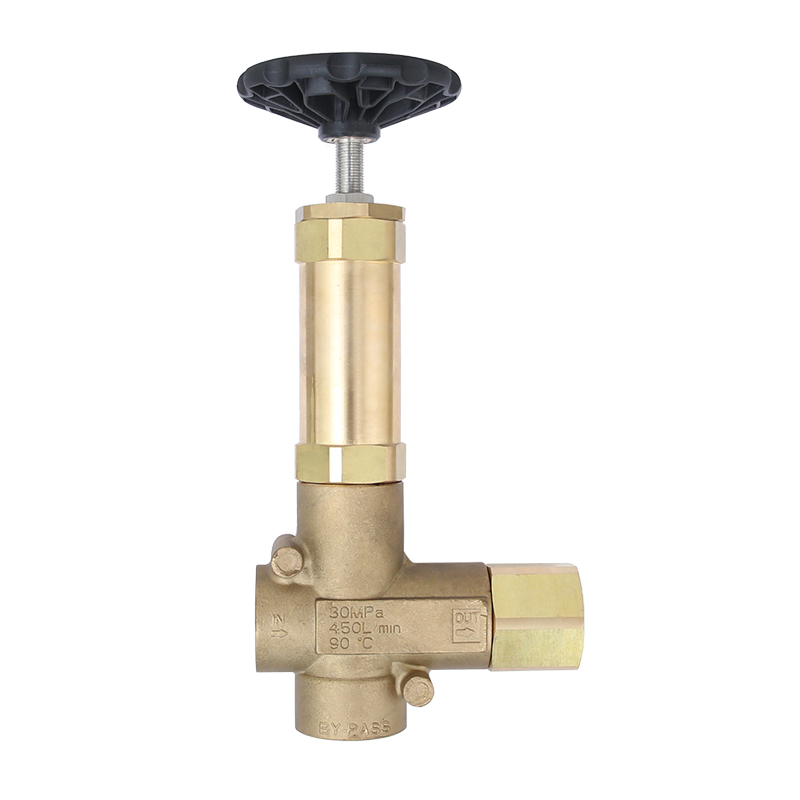

| Product Model | VRP450 Unloader Valve |
| Rated Pressure | 300bar |
| greatest pressure | 330bar |
| Rated Flow Rate | 450L/min |
| Working Medium | Clean Freshwater |
| Medium Temperature | 0℃ <T≤ 90℃ |
| Material | Copper |
| Weight | 3.58kg |
Installation Dimension Drawing
Exploded View and Bill of Materials
