| VS850B Series | |||
| Product Model | VS850B (300bar) Safety Valve | VS850B (500bar) Safety Valve | VS850B（800bar）Safety Valve |
| Rated Pressure | 300bar | 500bar | 800bar |
| Opening Pressure | 330-360bar | 550-600bar | 880-960bar |
| Rated Flow Rate | 100L/min | 100L/min | 100L/min |
| Working Medium | Clean Freshwater | Clean Freshwater | Clean Freshwater |
| Medium Temperature | 0℃ < t ≤ 90℃ | 0℃ < t ≤ 90℃ | 0℃ < t ≤ 90℃ |
| Inlet | G1/2 or G3/8 | G1/2 or G3/8 | G1/2 or G3/8 |
＋VS850B Series Safety Valve is used with different pumps.
Features
—— Forged Bronze Valve BodySafe and durable, capable of maintaining pressure and automatically releasing pressure.
Installation dimensions

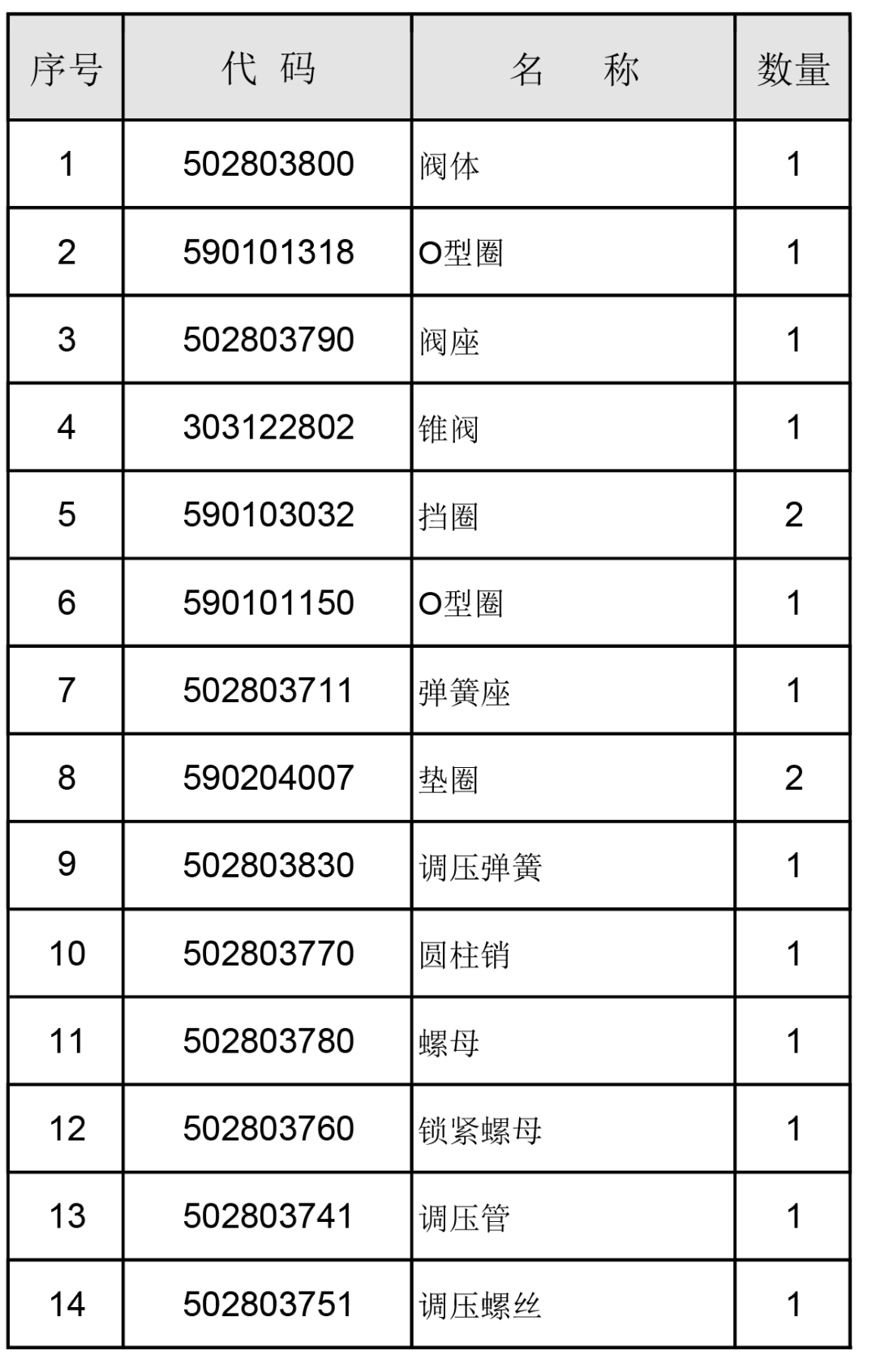

Exploded View and Bill of Materials
 |
 |
