Application

This unit is designed for conveying ambient temperature clean water, suitable for daily high-pressure cleaning vehicles, walls, floors, etc.

Material

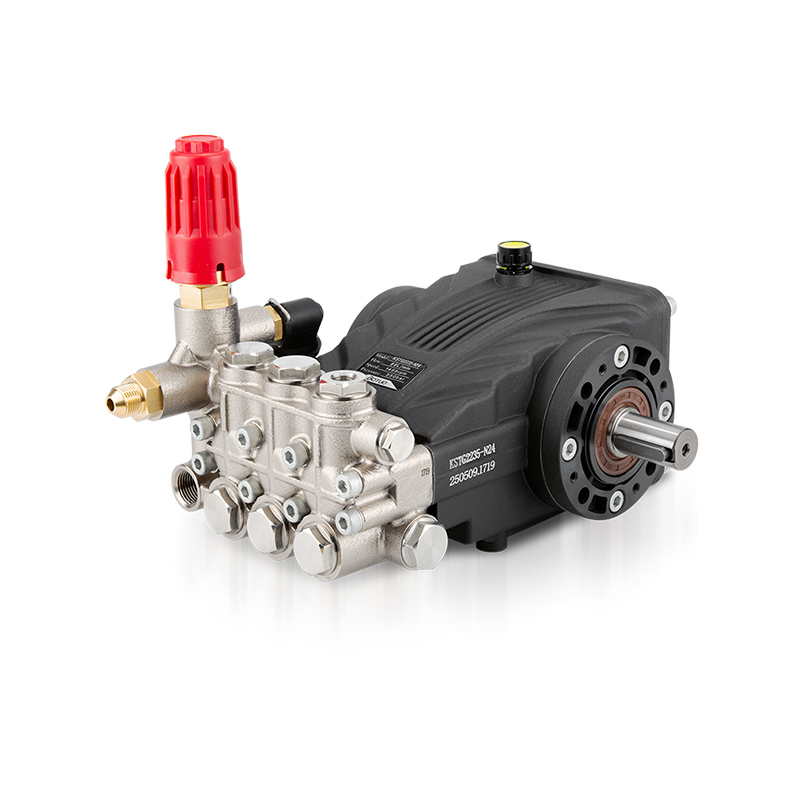

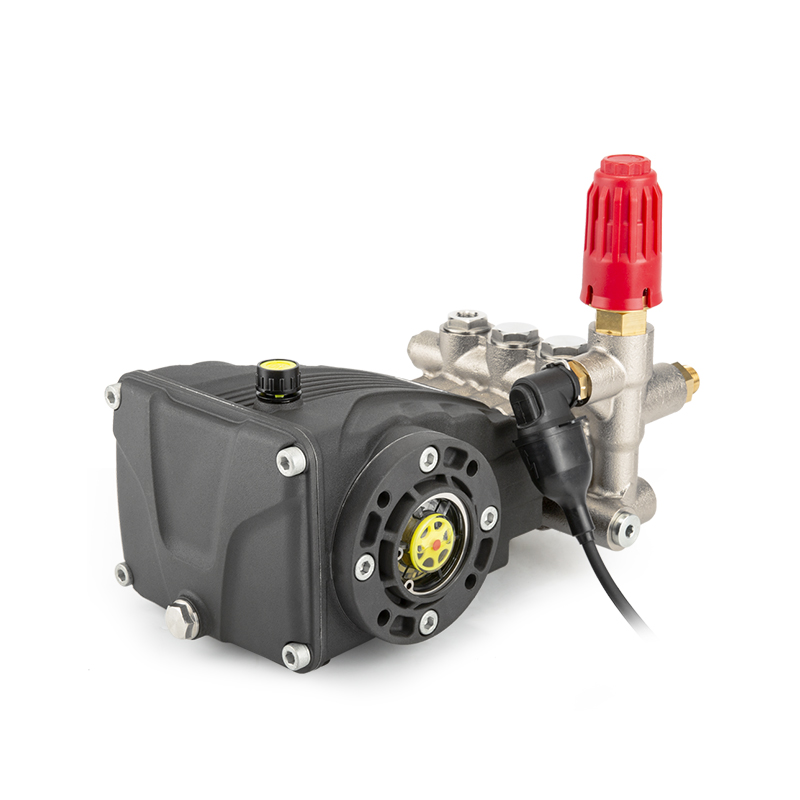

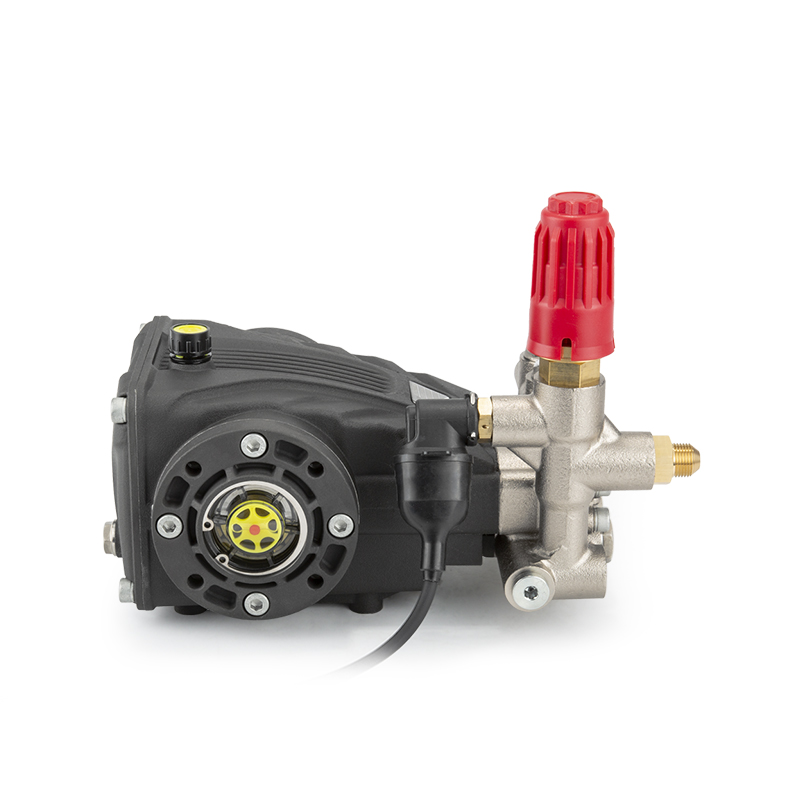

+ Die-cast aluminum housing, electroplated pump head with bright and eye-catching finish. Ceramic tube precision plunger pump, dual-seal system for safe and reliable operation.

Features
1、 Can be directly connected to different types of motors, with a maximum compatibility of 15kW motor.

2、The plunger motion is achieved through a connecting rod and crankshaft system. High-strength alloy steel crankshaft, deep groove ball bearings and tapered roller bearings ensure the stability of the power end operation.

3、Inlet and outlet single-direction check valves ensure efficient and stable hydraulic operation. Removable single-direction valve bolts facilitate maintenance.

4、 Equipped with unloader valve, high cost-effectiveness. No need for external unloader device, simplifying system design and improving stability. Pressure switch: stop machine when gun is closed, freeing hands.

5、Different attachments can be connected to the pump head.
